MODEL:FXAQ-A18

model: A18

name: FXAQ-A18

Standard size: Total length 4300mm, single fan width 1240mm x height 1212mm, single fan width 910mm.

Non standard size customization: up to 2000mm, width 3000mm

Materials and Materials: The main structure is made of 20x40x3mm thick steel pipes, treated with baking paint technology, and decorated with stainless steel 304x1.0mm panels. All machined parts are CNC processed and treated with blackening process on the surface

Motor parameters: A18 power (120W)

Motor speed: (3000 revolutions per minute)

Speed ratio: （ 1：10 ）

Power Supply: （ 24V ）

Motor used: DC brushless motor

LCD screen size: width 945mmx535m

LED screen size A18 width 1000mm x height 820mm

The chassis glass adopts: A18 width 1050x956mm

Track adopts: high-strength aluminum alloy multi wheel silent track

Mainboard input power supply: （220V ）， Mainboard output power supply: （24v、12v ）， Motherboard pairing options: facial recognition access card swiping, fingerprint machine, remote control, Bluetooth RF, radar, geomagnetic induction, infrared, etc

Safety configuration of platform screen doors: Each unit is equipped with 2 sets of safety infrared sensors

Screen door opening and closing indication and prompt: Each unit is equipped with flashing green door opening light, flashing red door closing light, and multiple language broadcasting function prompts

Function: The motherboard is equipped with anti pinch function, optional facial recognition, access card swiping, fingerprint, remote control, Bluetooth RF, radar, electromagnetic induction, infrared, etc. Health code facial recognition all-in-one machine. The whole machine is silent at 65 decibels, with an appearance made of 304 stainless steel material. All machined hardware accessories are CNC processed, with a surface blackening process. The overall structure is painted with 2 sets of infrared safety protection, and the chassis is inside Using 3 LED light strips, 5mm tempered glass with black paint on all sides, the movable fan is equipped with a blue super bright light strip, and the flashing red and green lights indicate the opening and closing of the door. Multiple prompt voice options are available. DC brushless motor with adjustable speed and optional emergency stop switch. The high-strength aluminum alloy multi wheel silent track has undergone 5 million 24-hour uninterrupted tests. There are LCD screens/P2.5LED displays to choose from, and the motherboard adopts LCD screen Chinese settings for easy code viewing and control!

Advantages of our company's products: beautiful appearance, reasonable structure, genuine materials, meticulous craftsmanship, complete machine noise reduction of 65 decibels, 304 stainless steel material, blackening process on hardware surface, overall structure baking paint process, 2 sets of infrared safety protection, motherboard with anti pinch function, 3 LED light strips inside the chassis, 5mm tempered glass, black baking paint around, movable fan with blue super bright light strip, flashing red and green lights for opening and closing doors, multiple prompt voice options, LCD display screen, P2.5 LED display screen, DC brushless motor adjustable speed, motherboard with Chinese settings on LCD screen, optional emergency stop switch

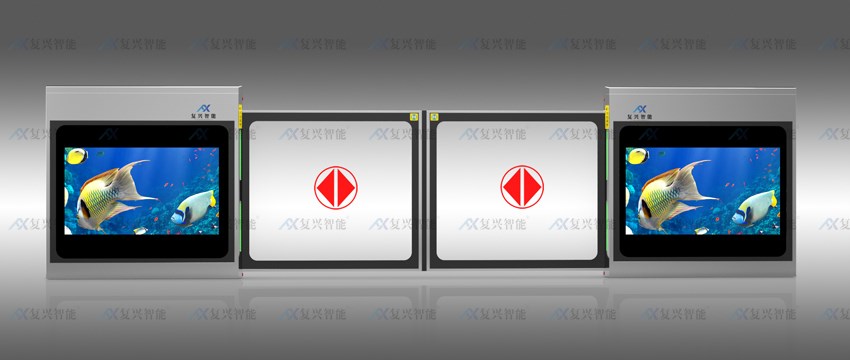

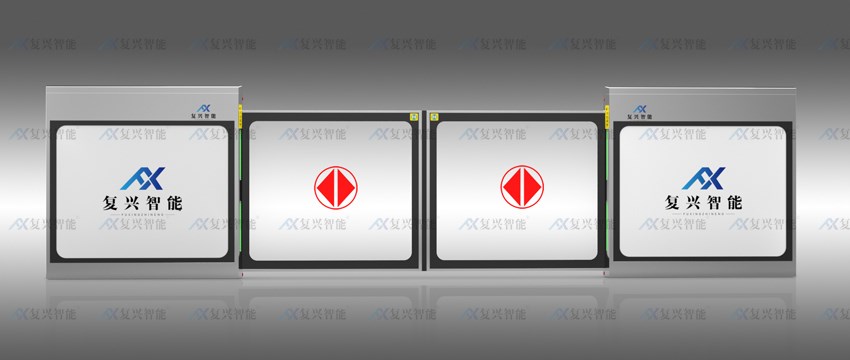

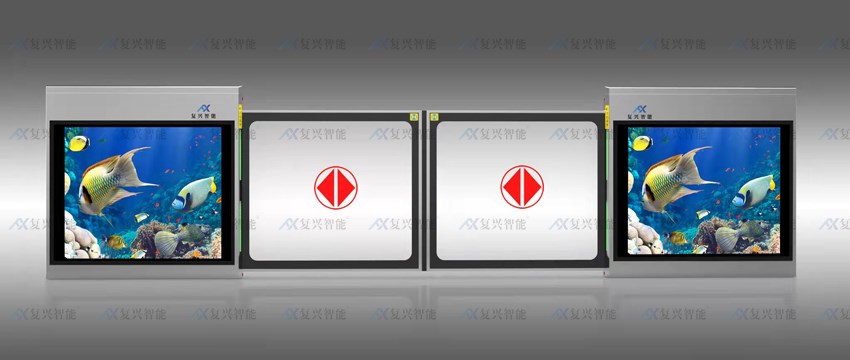

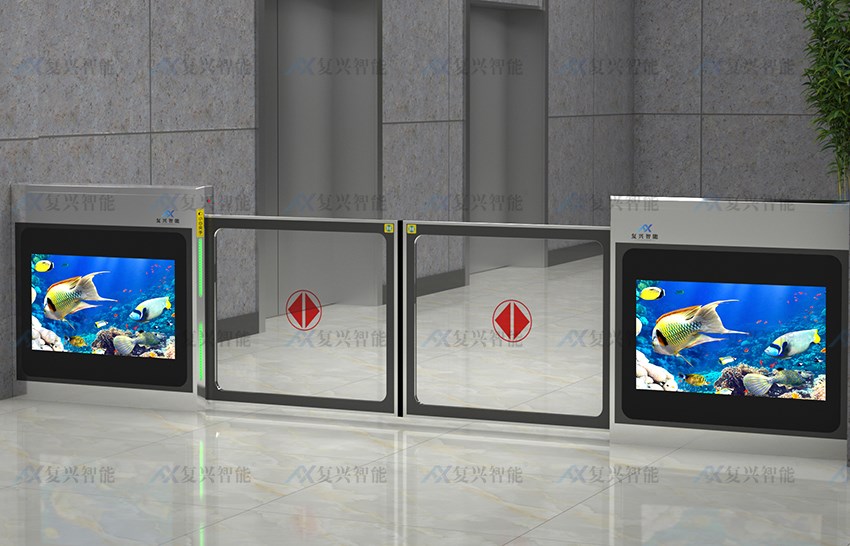

Product model diagram

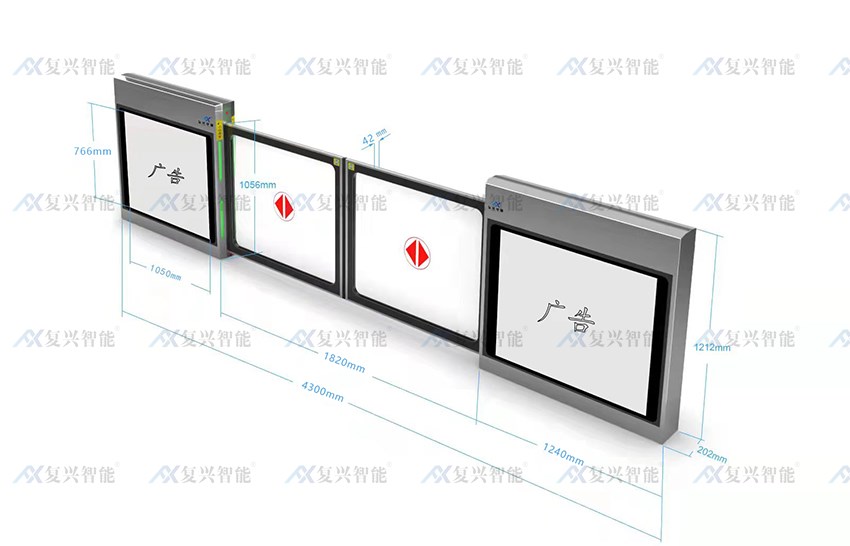

Product dimension diagram

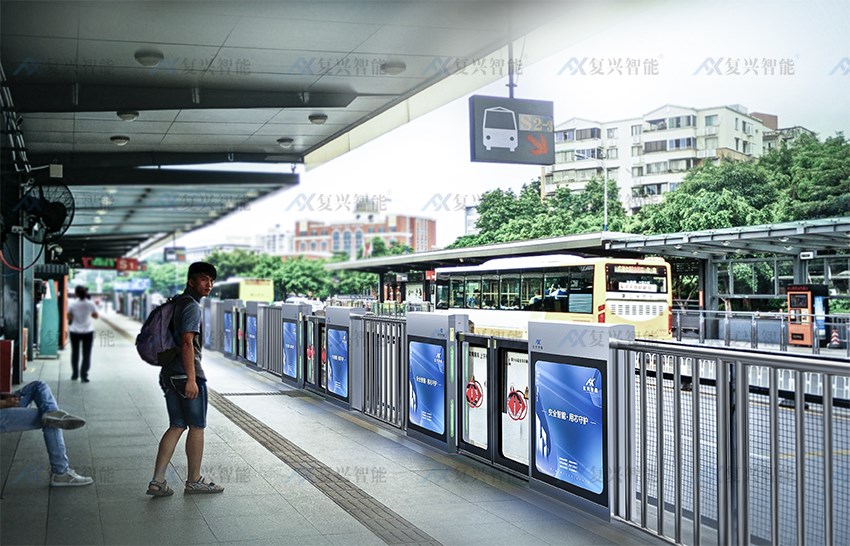

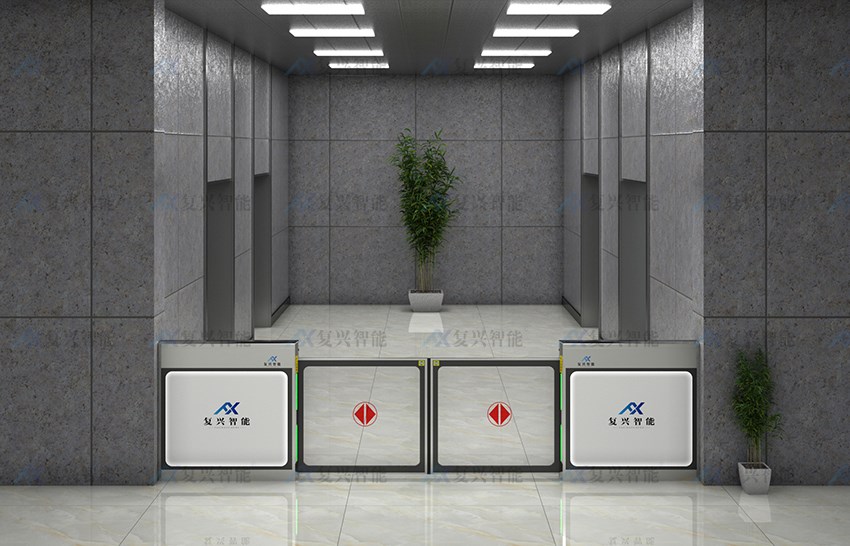

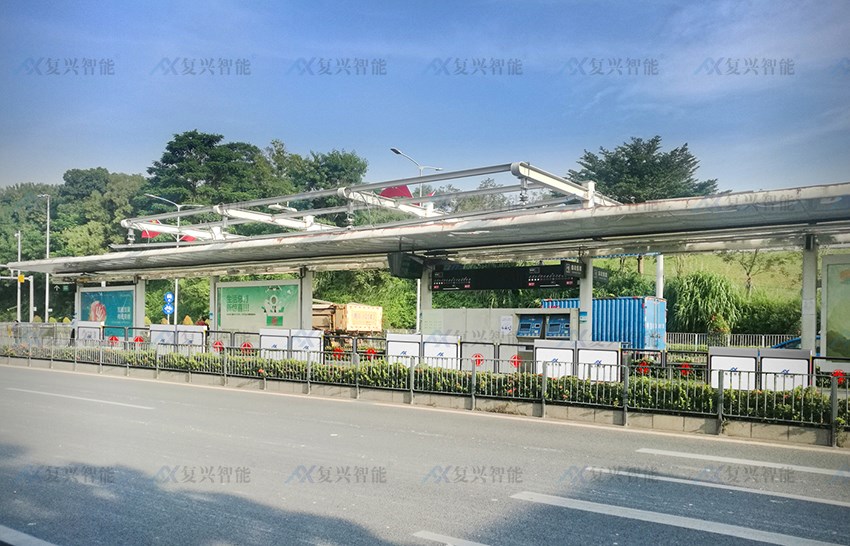

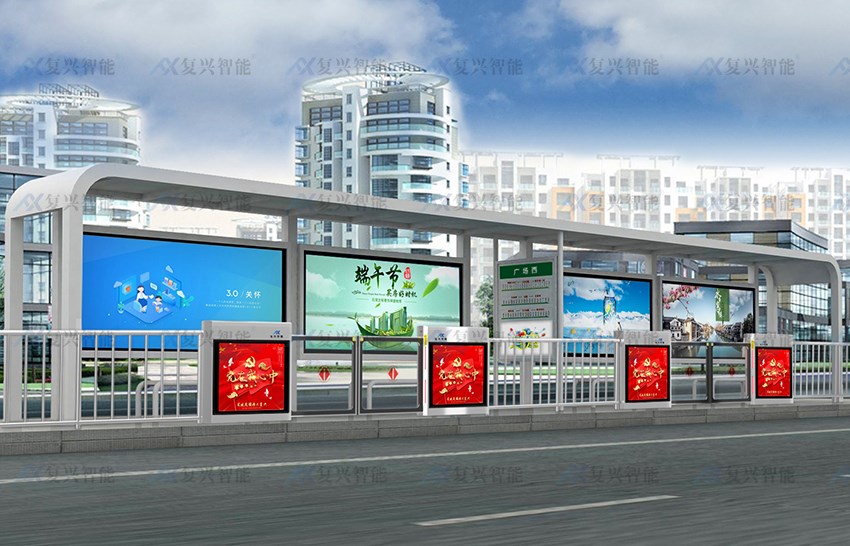

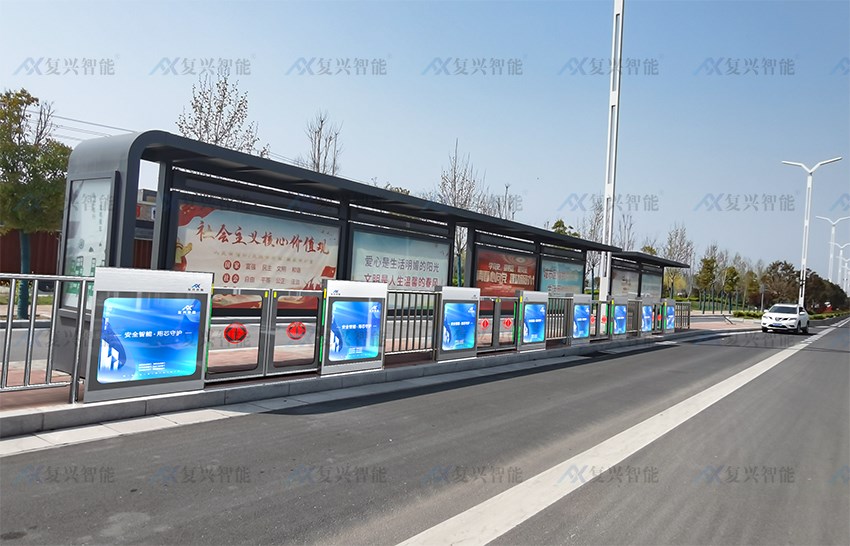

case
